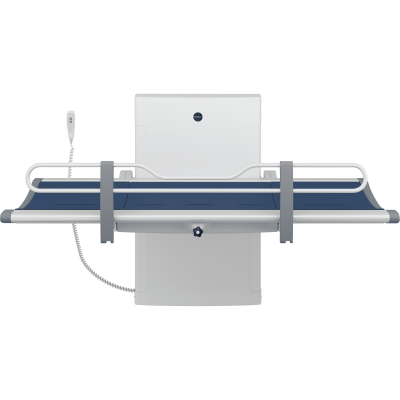

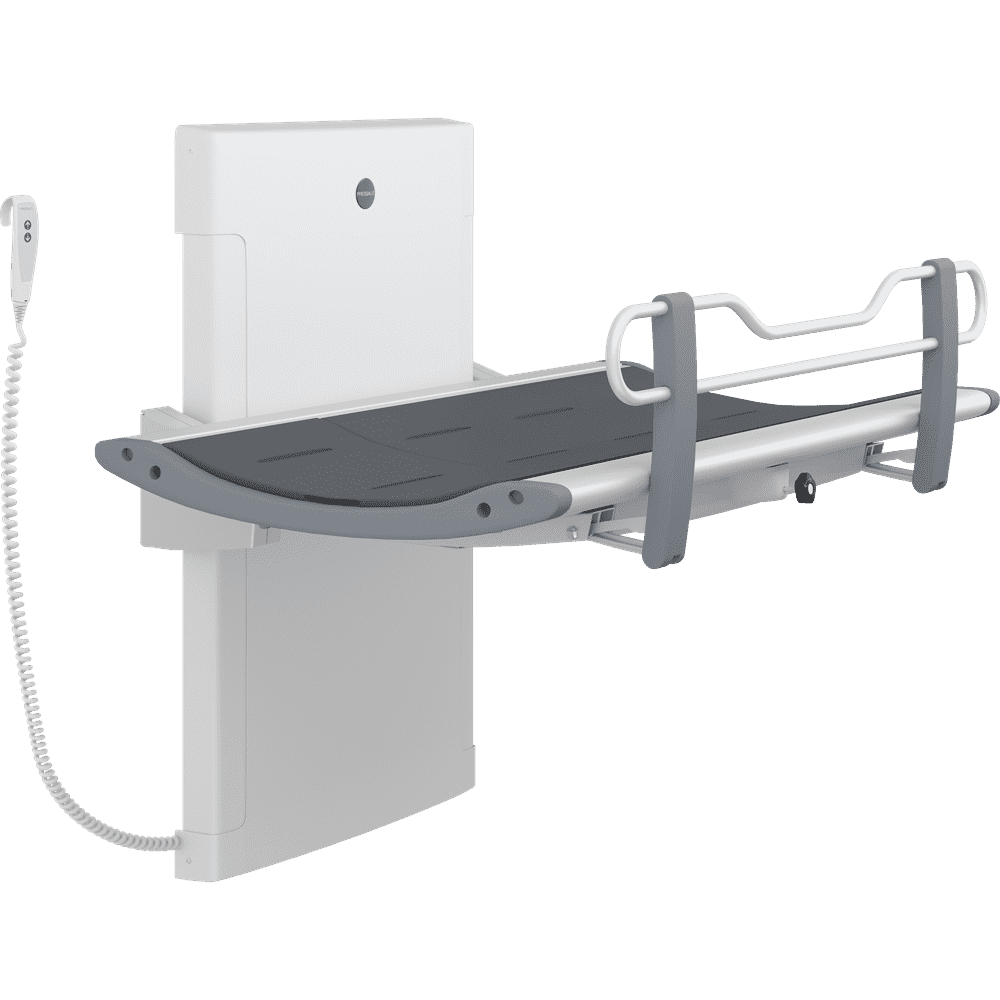

IT SCT 3000 Shower and changing table, electrically height adjustable

IT SCT 3000 shower and changing table - popular everywhere.
It's no coincidence that this shower and changing table is one of the most popular in its field. Its stylish design combined with optimal comfort for both user and helper results in private homes, public bathrooms, hospitals, institutions, etc. considering this product as the best on the market.

Pressalit offers a wide range of high quality mobile and wall-mounted shower and dressing tables with adjustable and fixed heights. They are designed to provide a stable platform for showering and changing clothes and diapers for adults and children with reduced mobility.
These tables can be used in schools, institutions, hospitals and private homes and are all designed to be durable, comfortable and easy to clean.
The design and flexibility of the tables ensure optimal working conditions for the carer and a high level of comfort and safety for the user.

The stylish and award-winning design of the SCT 3000 series focuses on comfort and ease of use.

• IT SCT 3000 shower and dressing table is motorised, with 700 mm height adjustment (from 300 mm to -1000 mm), with wired manual control.
• Foldable. With safety rail and water collection tray, with integrated spout.

• Available in two sizes:
  1. surface length 1800 mm, external dimensions 1057 mm x 1910 mm or

  2. surface length 1300 mm, external dimensions 1057 mm x 1410 mm.

• Materials: powder coated stainless steel, aluminium, polyurethane foam and polystyrene.
• Without mounting kit.

Colour

Sapphire blue (RAL 5003) or graphite grey (RAL 7024)

Designer

Rasmus Thygesen

Design year

2005

Materials

Aluminium, polyurethane foam, plastic, powder coated steel.

Ergonomics

- The ergonomically designed safety rails have a practical lower middle section that provides better access and working environment for the caregiver while transferring, showering, drying, changing and dressing the user.

- One-hand safety rails allow the caregiver to maintain eye contact and physical contact with the user throughout the process.

- Easy to clean, smooth contact surfaces that do not collect dirt and bacteria.

Features

- Water collection tray with built-in water drainage prevents water from splashing on caregivers or floors. A flexible hose attached to the centrally mounted spout of the water collection tray can be connected to a spout in the floor or wall.

- The slightly curved shape makes it comfortable and safe to lie on the table.

- Adjustable neck support that can be moved to either end of the 1800 mm shower and changing tables.

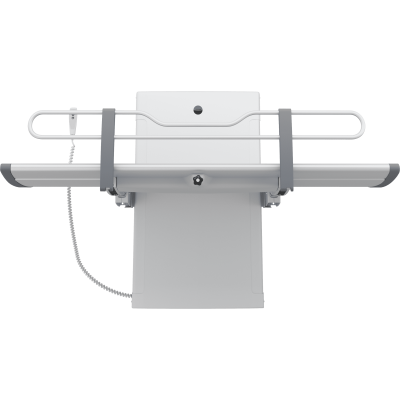

- Built-in controls allow the table to be folded when not in use, maximising usable floor space.

- The motorised shower and changing table is supplied with wired manual controls. The red buttons clearly indicate the "up" and "down" directions.

- The wired hand control comes with a handy bracket that can be mounted on the wall.

Capacity of the product

Maximum load: 200 kg.
If the table is subjected to a load of 200 kg, each fixing screw can support 26 kg.
This product has been statically tested with a load of 500 kg, as the IEC 60601 standard requires testing with a safety factor of 2.5.

Dimensioned drawing, mm

or

Adjustability: adjustable height

Adjustable height: 700 mm

Power connection (V): 230 V

Hz: 50-60 Hz

IP: IPX6

Power consumption (maximum load): 144 W

Power consumption (standby): 2 W

Speed: 15 mm/s

Noise level: 48 dB

Drive (motor): LA40CS Careline (Linak) 4000 N, IPX6

Control box: SMPS14 Careline (Linak), IPX6

Wired remote control: HB3 (Linak), IPX6

Maximum user weight: 200 kg

Maximum load: 210 kg

Sales unit: pcs.

Weight: 77,6 kg

Gross weight: 83,6 kg

Weight per box: 83,6 kg

Pallets per box
2
Quantity per box
1
Quantity per pallet
2

Cleaning

The product should be cleaned with hot water or mild soap detergent.
Do not use chlorine-based, caustic or abrasive cleaners as this may damage the surface.

The following cleaning products have been tested by Pressalit and can be used if diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+
Clinell universal wipes
Clinel Sporidical wipes
Chlor-Clean tablets
WipeClean ethanol disinfectant 80% disinfection
Wetwipe ethanol disinfectant 70% (wet wipes)

NON-DISINFECTANTS:
Wetwipe Universal

The product should be wiped immediately after cleaning with a soft cloth wrung out in clean water, otherwise some materials may discolour and stain and the surface coating may be damaged.

DECALCIFICATION OF ALUMINIUM PARTS:

Pressalit recommends removing calcareous deposits from wall rails and other aluminium parts with a solution of three parts 30% acetic acid and seven parts tap water. After washing the aluminium parts with this solution, the parts should be wiped with a damp cloth wrung out in clean water.

Declaration of Conformity

This product complies with all relevant requirements of Regulation (EU) 2017/745 on medical devices. It also meets all relevant requirements of Council Directive 2006/42/EC of 17 May 2006 on machinery and Council Directive 2011/65/EC of 17 May 2011 on RoHS.

WEEE

Please contact your local Pressalit affiliate or distributor (in countries where there is no affiliate) who will arrange recycling of electronic waste in accordance with the WEEE Directive.

Guarantee

Pressalit undertakes to remedy defects in materials and workmanship for a period of three years from the date of invoicing. WARNING If the product is used in an environment rich in salt or chloride, the warranty is reduced from the normal 3 years to 1 year. Salt and chloride have a corrosive effect on the components of the product and reduce the life expectancy of the product. However, the adverse effects can be reduced by showering the product daily with tap water.
