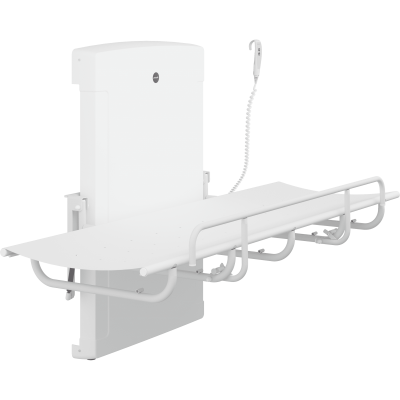

IT SCT 1000E Shower change table, electrically height adjustable

Pressalit offers a wide range of high quality mobile and wall-mounted, adjustable and fixed height shower and changing tables. They are designed to provide a stable platform for showering and changing the clothes of adults and children with reduced mobility.
These tables can be used in schools, institutions, hospitals and private homes and are all designed to be durable, comfortable and easy to clean.
The design and flexibility of the tables ensure optimal working conditions for the carer and a high level of comfort and safety for the user.

• IT SCT 1000E Shower and dressing table, motorised, height adjustable 400 mm; from 480 mm to 880 mm, with manual control by wire.
• Foldable. With safety rail.
• External dimensions 765 mm x 1400 mm or 765 x 1800 mm (two sizes)
• Materials: Rilsan coated steel and PVC coated canvas (phthalate free).
• Without mounting kit.

Colour:

White

Designer

Pressalit

Design year

2010

Materials

The table is made of practical and durable PVC canvas that is phthalate-free. The frame is made of powder coated steel.

Ergonomics

Carers can easily adjust the height of the table to achieve the right working position. This ensures safe showering and dressing for the user and minimises the risk of back injury for the carer.

Features

Electric, wired manual control - red buttons clearly indicate "Up" and "Down". Wired manual control includes a bracket for wall mounting.
Built-in gas cylinders allow the table to be folded when the unit is not in use, freeing up valuable floor space.
A shower curtain (optional) for the shower and changing table protects the caregiver from spills.

Capacity of the product

Maximum load: 150 kg.

If the table is 150 kg, each fixing screw is subjected to a load of 20 kg.
This product has been statically tested with a load of 375 kg, as the IEC 60601 standard requires testing with a safety factor of 2.5.

Dimension drawing, mm

 or

Adjustability
Adjustable height

Adjustable height
400 mm

Mains connection (V)
230 V

Hz
50-60 Hz

IP
IPX6

Power consumption (maximum load)
70 W

Power consumption (standby)
2 W

Speed
15 mm/s

Noise level
48 dB

Drive (motor)
LA31 Careline, (Linak), 4000 N, IPX6

Control box
CB9 Careline, (Linak), IPX6

Wired remote control
HB3 (Linak), IP66

Maximum user weight
150 kg

Maximum load
150 kg

Sales unit
pcs

Weight
44,46 kg or 45,92 kg (two sizes)

Gross weight
54 kg or 55 kg (two sizes)

Weight per box
54 kg or 55 kg (two sizes)

Boxes per pallet
1

Quantity per crate
1

Quantity per pallet
1

Cleaning

IT SCT 1000 AND 2000.
The product should be cleaned with hot water or mild soap detergent.
Do not use chlorine-based, caustic or abrasive cleaning products as this may damage the surface.

The following cleaning products have been tested by Pressalit and can be used if diluted according to the instructions on the container.

DISINFECTANTS:
Clinimax Difficil-S
Erisan OXY+

DISINFECTANTS:
Suma Star free D1
Taski 100
Taski 200

The product should be wiped immediately after cleaning with a soft cloth wrung out in clean water, otherwise some materials may discolour and stain and the surface coating may deteriorate.

Declaration of Conformity

This product complies with all relevant requirements of Regulation (EU) 2017/745 on medical devices. It also meets all relevant requirements of Council Directive 2006/42/EC of 17 May 2006 on machinery and Council Directive 2011/65/EC of 17 May 2011 on RoHS.

Warranty

Pressalit undertakes to remedy defects in materials and workmanship for a period of three years from the date of invoicing. WARNING If the product is used in an atmosphere rich in salt or chloride, the warranty is reduced from the normal 3 years to 1 year. Salt and chloride have a corrosive effect on the components of the product and reduce the life expectancy of the product. However, the adverse effects can be reduced by showering the product daily with tap water.
