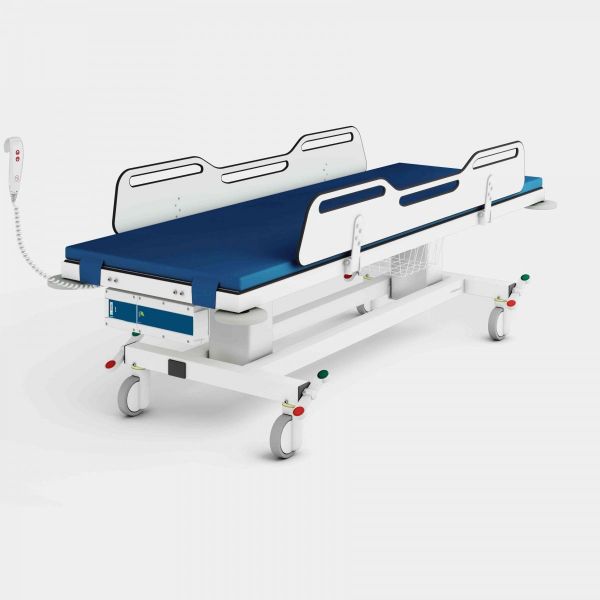

IT MCT 2 change trolley, electrically height adjustable

Art. no: IT MSCT 2

- Lying surface: 700 x 2100 mm or 700 x 1700 mm

- External dimensions: 820 x 2190 mm or 820 x 1790 mm (available in two sizes)

- Developed with the user's safety and well-being in mind.

- Easy access from all sides helps to ensure optimal working conditions for nurses

- Easy to clean, well thought-out design with durable materials and a range of features

Pressalit offers a wide range of high quality mobile and wall-mounted shower and changing tables with adjustable height and fixed height. They are designed to provide a stable platform for showering, changing and changing clothes for adults and children with reduced mobility.
These tables can also be used in schools, institutions, hospitals and private homes and are all designed to be durable, comfortable and easy to clean.
The design and flexibility of the tables ensure optimal working conditions for the caregiver and a high level of comfort and safety for the user.

IT MCT 2 Change trolley, 820 x 2190 mm or 820 x 1790 mm (available in two sizes), with two fold-down sides.
Electrically height adjustable (battery operated), with wired remote control.
400 mm lifting range, from 550 mm to 950 mm.
With central locking system, wire basket for convenient storage, bumpers on all four corners and battery and charger.
Lifting columns and wired remote control IPX6, battery and charger IPX5.
Mattress available separately.

Colour: White

Designer: Anne Mette Thy Tygesen

Design year: 2020

Ergonomics

- The ergonomically designed safety rails have a practical lower-central part that provides better access and working environment for the caregiver while transferring, changing and dressing the user.
- The one-hand safety rails allow the caregiver to maintain eye contact and physical contact with the user throughout the process, and the folding safety rails provide easy access from all four sides of the table.
- Cut-out handles on the safety rails allow users to assist with turning, which motivates physical exercise.
- A storage drawer allows the caregiver to store supplies and have on hand what is needed for showering right away.
- Easy to clean, smooth contact surfaces that don't collect dirt and bacteria.

Features

- The trolley can be moved from room to room for easy transport and multiple users. Two lifting columns are used to create an aesthetically pleasing, hygienically optimized, physically and visually stable design.
- Intuitive, easy-to-use, one-hand-operated slide-down rails - Centralized braking system allows the caregiver to lock all four wheels simultaneously when stepping on any activator, ensuring greater safety and ease of use in all situations.
- All lock and release activators are activated by stepping on them from above to ensure ergonomic interaction and prevent foot and toe injuries. All brakes have a non-slip surface and pattern to prevent slipping even in wet conditions.
- A rotating bumper on each corner of the trolley protects the surrounding walls and the product itself during contact and transfer.
- Electric height adjustment with battery and charger. The wall-mounted charger included with the battery can be installed in any room, including outside the bathroom if desired. When the battery is running low, an audible signal is emitted each time the wired remote control is activated.
- Battery charging time is 3-4 hours.

Product capacity

Maximum user weight: 200 kg.
Maximum load: 250 kg. (user weight + water + accessories)

Dimensioned drawing, mm

Adjustability: height adjustable

Adjustable height: 400 mm

Mains connection (V): 230 V

Hz: 50-60 Hz

IP: IPX6

Power consumption (maximum load): 100 W

Power consumption (standby): 0 W

Speed: 19 mm/s

Drive (motor): BL1 (Linak) IPX6

Control box: COBO / CU20 (Linak) IPX6

Wired remote control: HB30 (Linak) IPX6

Maximum user weight: 200 kg

Maximum load: 250 kg

Sales unit: pcs.

Weight: 106 kg or 102 kg (two sizes)

Gross weight: 144 kg or 137 kg (two sizes)

Weight per box: 144 kg or 137 kg (two sizes)

Number of crates per pallet: 1

Quantity per box: 1

Quantity per pallet: 1

Declaration of conformity

This product complies with all applicable requirements of Regulation (EU) 2017/745 on medical devices. It also meets all relevant requirements of Council Directive 2006/42/EC of 17 May 2006 on machinery and Council Directive 2011/65/EC of 17 May 2011 on RoHS.

Warranty

Pressalit undertakes to remedy defects in materials and workmanship for a period of three years from the date of invoicing.
