IT PLUS ZU 02 Manually adjustable shower seat
Art. no: IT PLUS ZU 02
- With backrest and armrest or with backrest only.
- Height adjustable to 195 mm (450 mm seat length) or 250 mm (310 mm seat length).
- Can be mounted on horizontal PLUS wall rails (not included).
- Maximum flexibility for multi-user showers.
- Can be moved and removed without tools.
- Wide choice of colours and different combinations of seat, backrest and armrests available.
- Available with or without seat opening (450 mm only).
PLUS shower seats are available in a range of colours. They are available in fixed height, electrically and manually adjustable, with or without opening, with two seat lengths and with back and armrests.
Suitable for wall or Pressalit PLUS wall rail mounting.

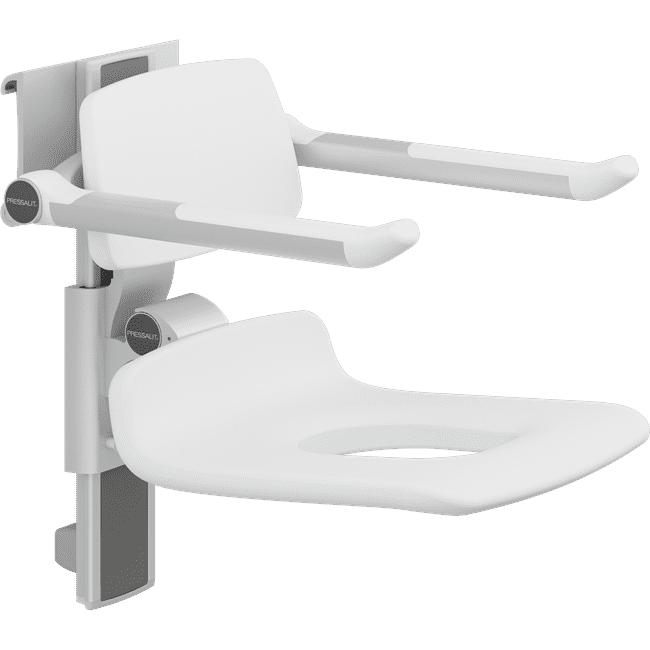

PLUS shower seat with opening, backrest and armrest. Manually adjustable in height and laterally, without tools. The armrests are independently adjustable in height. The seat and armrests can be folded.
Materials: comfortable polyurethane foam over plywood core, mounted on aluminium profile. The non-slip grip surface of the armrests is made of soft SEBS (styrene ethylene butylene styrene).
For mounting on horizontal PLUS wall rails (not supplied).
Colours

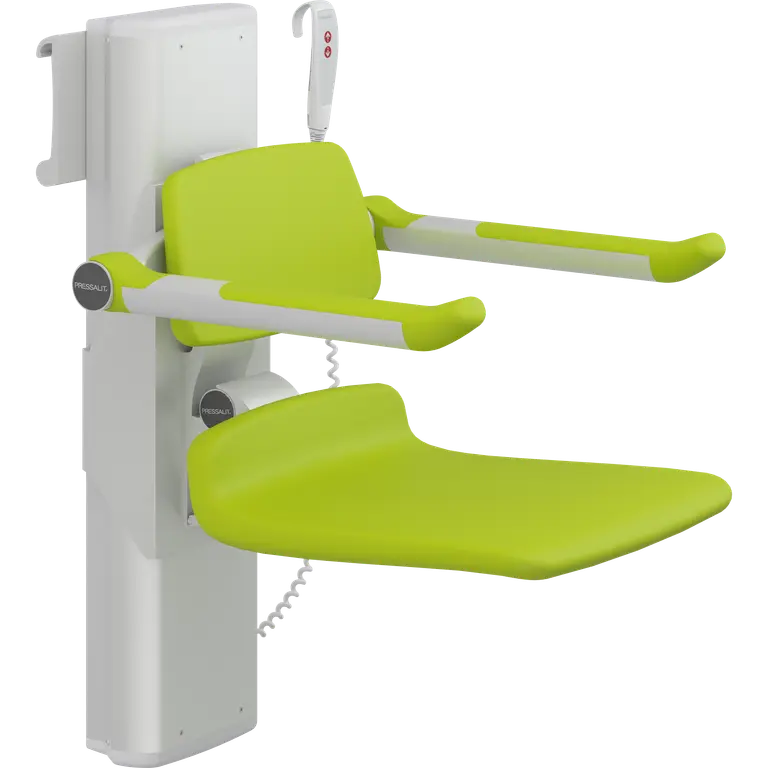

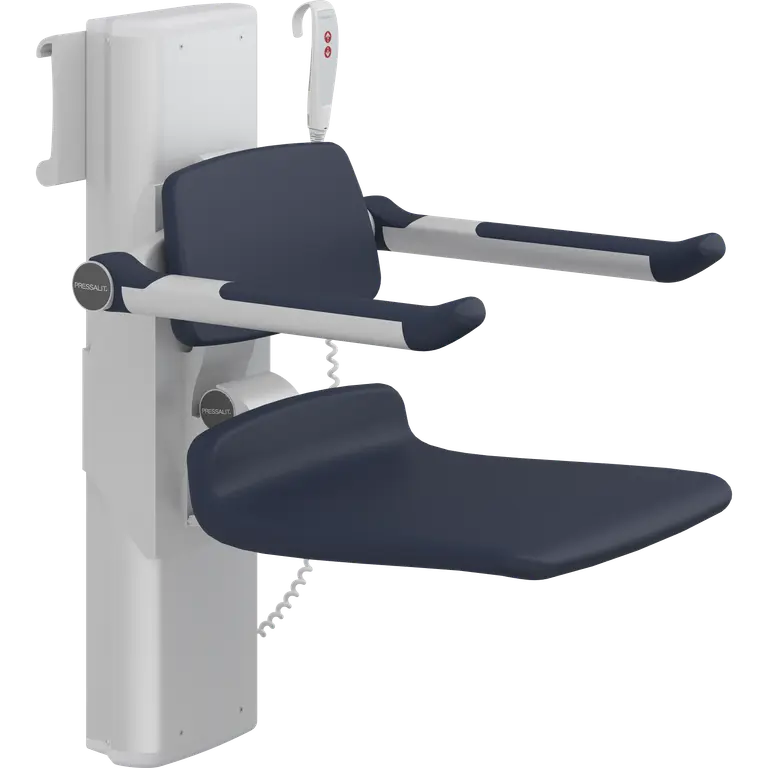

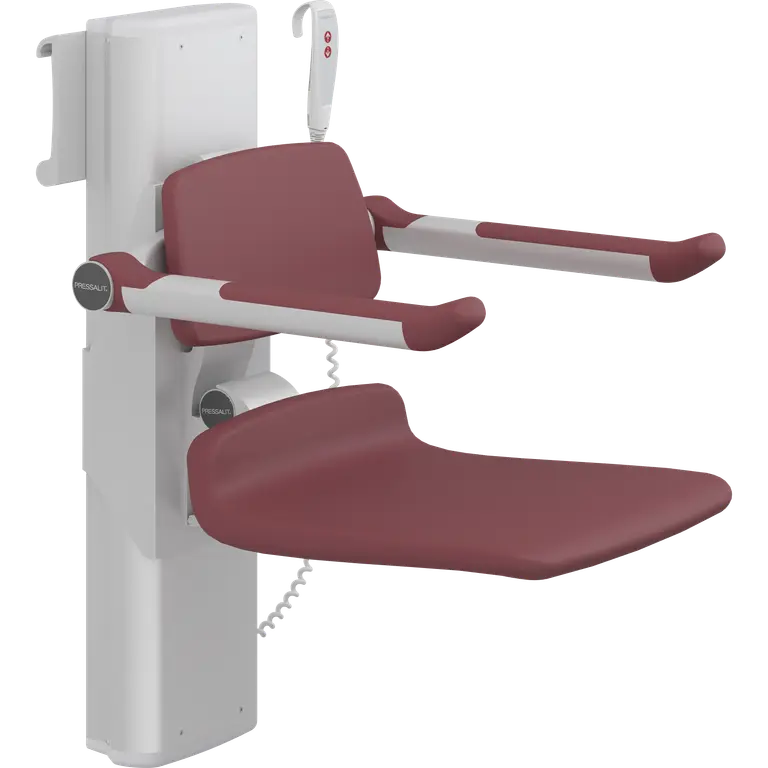

White, red (RAL 3003), dark blue (RAL 50111), anthracite, lime green, orange.
Choice of sizes (seat length)
450 mm and 310 mm.

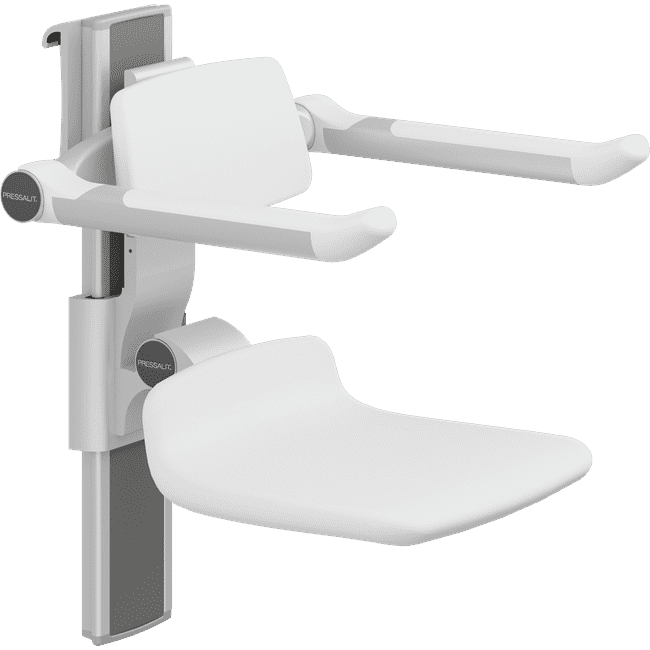

The 450 mm version is available with or without seat opening and without armrest (the 310 mm version is only available with back and armrest and without seat opening).
Normal use
The shower seat is intended to be used as a shower seat.
The life expectancy of the shower seat is 10 years, provided that maintenance is carried out according to the instructions for use (OMM).
Designer
Rasmus Thygesen
Year of design
2011
Materials
The shower seat is made of polyurethane (PU) foam with a plywood core, covered with a moulded coating surface, protected by a clear PU lacquer. The backrest is made of polyurethane (PU) foam protected by a clear PU lacquer. The arms are made mainly of 10 micrometre anodised aluminium with a non-slip grip surface made of soft SEBS at the end, containing a glass reinforced nylon core. The wrist arm is also made of soft SEBS. Internal components and fasteners are mainly made of stainless steel. The wrist tube is sealed with ABS.
Ergonomics
Ergonomically designed seat - contact surface 450 x 437 mm. Soft and non-slip material with a warm touch. The oval shape of the armrests provides an easy and comfortable surface for leaning and leaning against.
Features
The seat, backrest and armrests are adjustable simultaneously thanks to a safe and simple click system. The armrests can be adjusted independently of the seat and backrest. The seat and armrests can be folded when not in use or when you want to maximise floor space.
Capacity of the product
Maximum user weight (seat): 200 kg.
Maximum load capacity of armrests: 55 kg.
For a seat load of 200 kg, each wall-mounted anchorage element receives a load of 23 kg.
The seat has been statically tested with a safety factor of 1,5, which is a requirement according to the applicable assistive device standards.

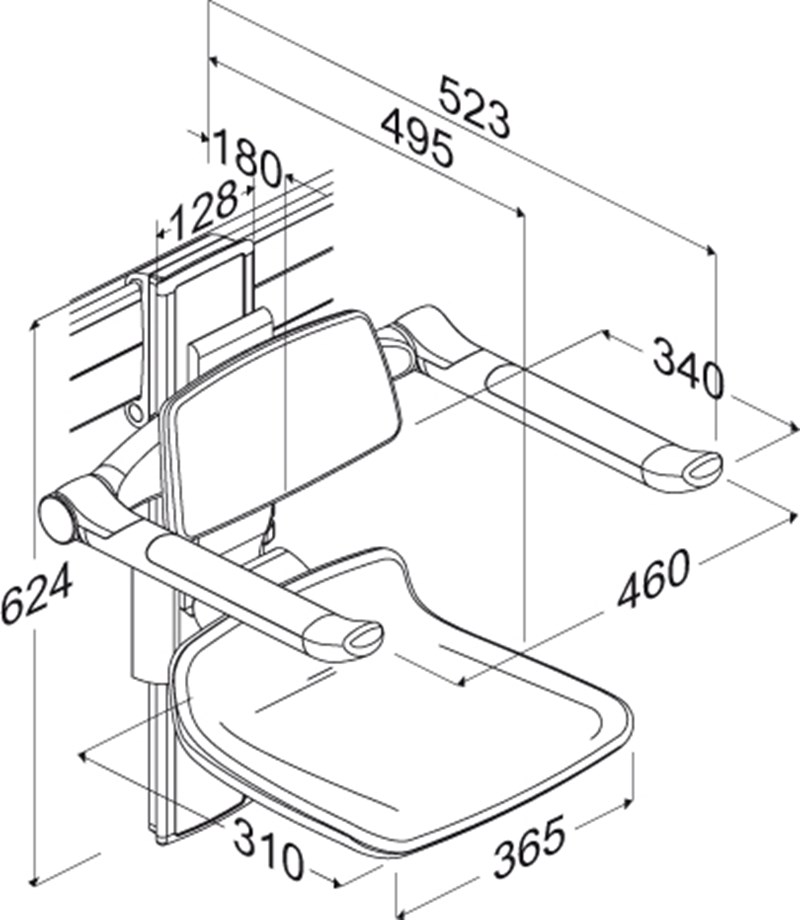

Dimensioned drawing, mm
Adjustability
Adjustable in height and laterally
Adjustable height
With 450 mm backrest and armrest: 195 mm
450 mm with backrest only: 380 mm
310 mm: 250 mm
Maximum user weight
200 kg
Maximum load
200 kg
Sales unit
pcs
Weight
14,16 kg (with 450 mm backrest, seat opening) or
15,14 kg (with 450 mm backrest, without seat opening) or
19,28 kg (with 450 mm backrest and armrest, without seat opening) or
18,3 kg (with 450 mm backrest and armrest, with seat opening)
17,085 kg (310 mm)
Gross weight
16,3 kg (with 450 mm backrest and seat opening) or
17,28 kg (with 450 mm backrest, without seat opening) or
21,42 kg (with 450 mm backrest and armrest, without seat opening) or
20.44 kg (with 450 mm backrest and armrest with seat opening)
19,87 kg (310 mm)
Weight per box
16,3 kg (with 450 mm backrest and seat opening) or
17,28 kg (with 450 mm backrest, without seat opening) or
21.42 kg (with 450 mm backrest and armrest, without seat opening) or
20.44 kg (with 450 mm backrest and armrest with seat opening)
19,87 kg (310 mm)
Boxes per pallet
6
Quantity per crate
1
Quantity per pallet
6
Cleaning
The product should be cleaned with hot water or mild soap detergent.
Do not use chlorine-based, caustic or abrasive cleaners as this may damage the surface.
Important: The polyurethane surface of the PLUS Shower Seat and PLUS Backrest has an antibacterial surface which will be damaged if cleaned with anything other than soap and water.
The product should be wiped immediately after cleaning with a soft cloth wrung out in clean water, otherwise some materials may discolour and stain and the surface coating may deteriorate.
DECALCIFICATION OF ALUMINIUM PARTS:
Pressalit recommends removing lime deposits from wall rails and other aluminium parts with a solution of three parts 30% acetic acid and seven parts tap water. After washing the aluminium parts with this solution, the parts should be wiped with a damp cloth wrung out in clean water.
Declaration of Conformity
This product complies with all relevant requirements of Regulation (EU) 2017/745 on medical devices.
Warranty
Pressalit undertakes to remedy defects in materials and workmanship for a period of five years from the date of invoicing.
Műszaki adatok és méretrajz
Terhelhetőség:
200 kg
Kartámasz teherbírás:
55 kg
Statikusan tesztelve 1,5 -szörös biztonsági tényezővel
Ülőfelület mérete:
310 x 365 mm
Nettó tömeg (termék tömege csomagolás nélkül):
17,1 kg
Bruttó tömeg (termék tömege csomagolással együtt):
19,9 kg
Gyakran ismételt kérdések (GYIK)
A zuhanyülőke teherhordó, masszív falra szerelhető fel. Ajánlott beton, tömör tégla vagy más megfelelő szerkezetű falszerkezet esetén felszerelni.
A termék rögzítése a megfelelő falazathoz illeszkedő tiplikkel és csavarokkal történik, ezek nem minden esetben képezik a csomag részét. Kérjük, szerelés előtt ellenőrizze a falszerkezet típusát, és válassza a megfelelő rögzítőelemeket.
A termék kompatibilis a Pressalit Vízszintes PLUS fali sínnel is, amely lehetővé teszi a zuhanyülőke oldalirányú állíthatóságát a fal mentén. Fontos megjegyezni, hogy a fali sín nem tartozék, külön megvásárolandó elem. Ez a megoldás különösen ajánlott flexibilis kialakítású fürdőszobák esetén, ahol több felhasználó eltérő igényeit kell kiszolgálni.
A felület meleg vízzel vagy enyhe szappanos oldattal könnyen tisztítható. Kérjük, ne használjon maró hatású, klóros vagy csiszoló szemcséket tartalmazó tisztítószereket, mivel ezek károsíthatják a felületet.
Az ülőfelület puha tapintású, csúszásgátló poliuretán habból készült, melyet egy stabil, rétegelt lemez maggal és alumínium szerkezettel erősítettek meg. Ez biztosítja a kényelmet és a tartósságot egyaránt.
